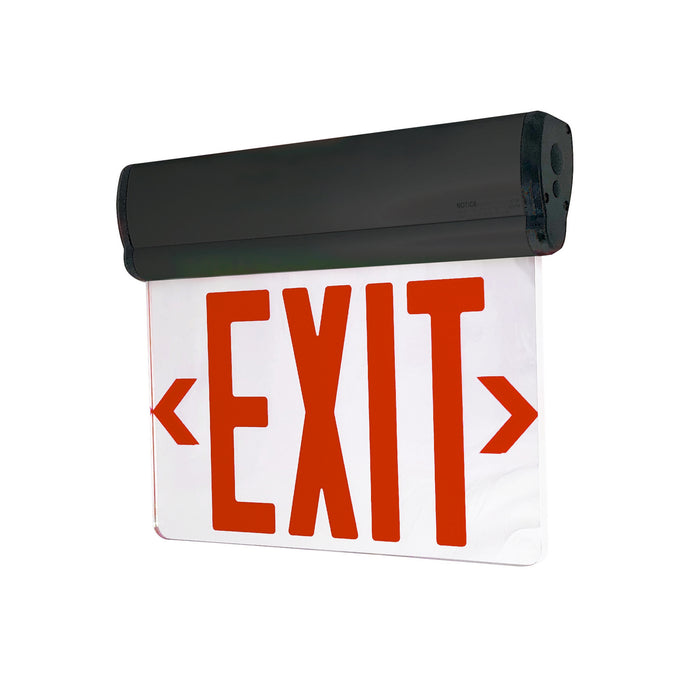

Exit LED Edge-Lit Exit Sign in Black

SKU NX-811-LEDR2MB
Original price $109.62 - Original price $109.62
Original price $109.62
$109.62
$109.62 - $109.62
Current price $109.62

Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6" Red letters. 2-Circuit Input Voltage: 120/277VAC Wattage: 3W Finish: Black Face: Edge-lit double face, mirrored acrylic. Face is constructed with 0.40" clear acrylic with rounded and finished edge for attractive appearance. Face contains red 6" high and 3/4" thick lettering inside face to comply with NFPA requirements. Reflective stick-on chevrons provided and are applied to rear of panel in order for light to reflect off the inner face of the chevron tape to provide a similiar effect as the lettering embedded inside the acrylic. Face can be adjusted in the field from 0º to 90º for wall, ceiling or sloped applications. Body: Extruded aluminum housing and acrylic panel. Mounting: Mounting hardware consist of 0.06" steel universal junction box bracket, 7/8" profile 0.11" die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knocouts once mounting configuration is selected. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA

Finish:

Finish: Black

Dimensions:

Length: 1.63"

Width: 12.00"

Height: 10.63"

Lamping:

Light Source:LED

Max Wattage: 3.00 W

Bulbs Included: No

Dimmable: No

Additional Details:

Location Rating: Damp

Safety Listing: UL

Energy Efficient

Manufactured In CHN

Spec Sheet - NX-811-LEDR2MB

Availability:
44 in stock, ready to be shipped
