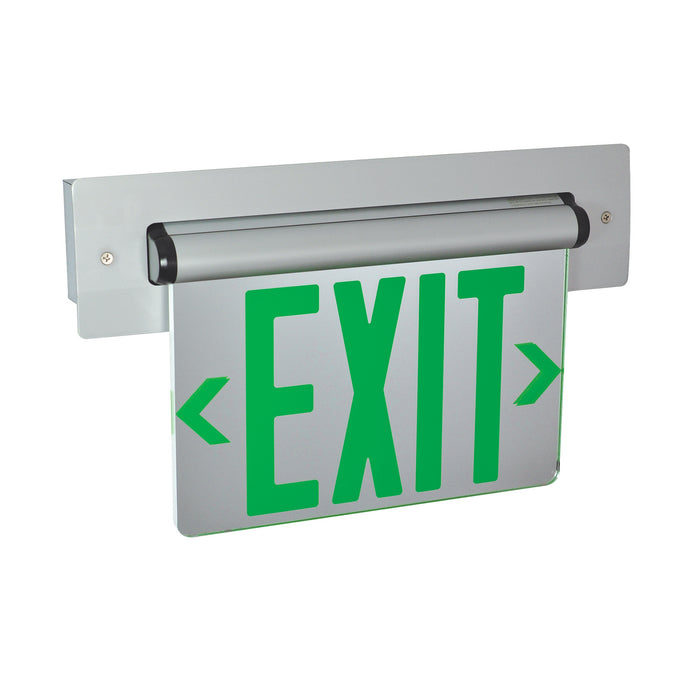

Exit LED Edge-Lit Exit Sign in Green/Mirror/Aluminum

SKU NX-814-LEDG2MA
Original price $55.00 - Original price $55.00
Original price $55.00
$55.00
$55.00 - $55.00
Current price $55.00

Architectural acrylic edge-lit sign for applications requiring a recessed installation where the wiring compartment is concealed within a galvanized steel housing. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. 6" Green letters. 2-Circuit. Input Voltage: 120/277VAC Wattage: 3W Finish: Aluminum Face: Edge-lit double face, mirrored acrylic. Acrylic face has rounded and finished edge for attractive appearance. Green 6" lettering inside face with adhesive mounted chevrons included. Face can be adjusted in the field from 0° to 90° for wall, ceiling or sloped applications. Body: Galvanized steel housing with die-cast cover plate and acrylic panel. Mounting: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90° perpendicular to junction box if desired. A T-Bar notch allow for easy installation in a suspended ceiling. Testing: High charge / ready operation indicator light with test button and automatic reset. Listing: cULus Listed for Damp Locations, UL 924, Title 20, NFPA

Finish:

Finish: Green/Mirror/Aluminum

Dimensions:

Length: 1.63"

Width: 12.00"

Height: 10.63"

Lamping:

Light Source:LED

Max Wattage: 3.00 W

Bulbs Included: No

Dimmable: No

Additional Details:

Location Rating: Damp

Safety Listing: UL

Energy Efficient

Manufactured In CHN

Spec Sheet - NX-814-LEDG2MA

Availability:
59 in stock, ready to be shipped
